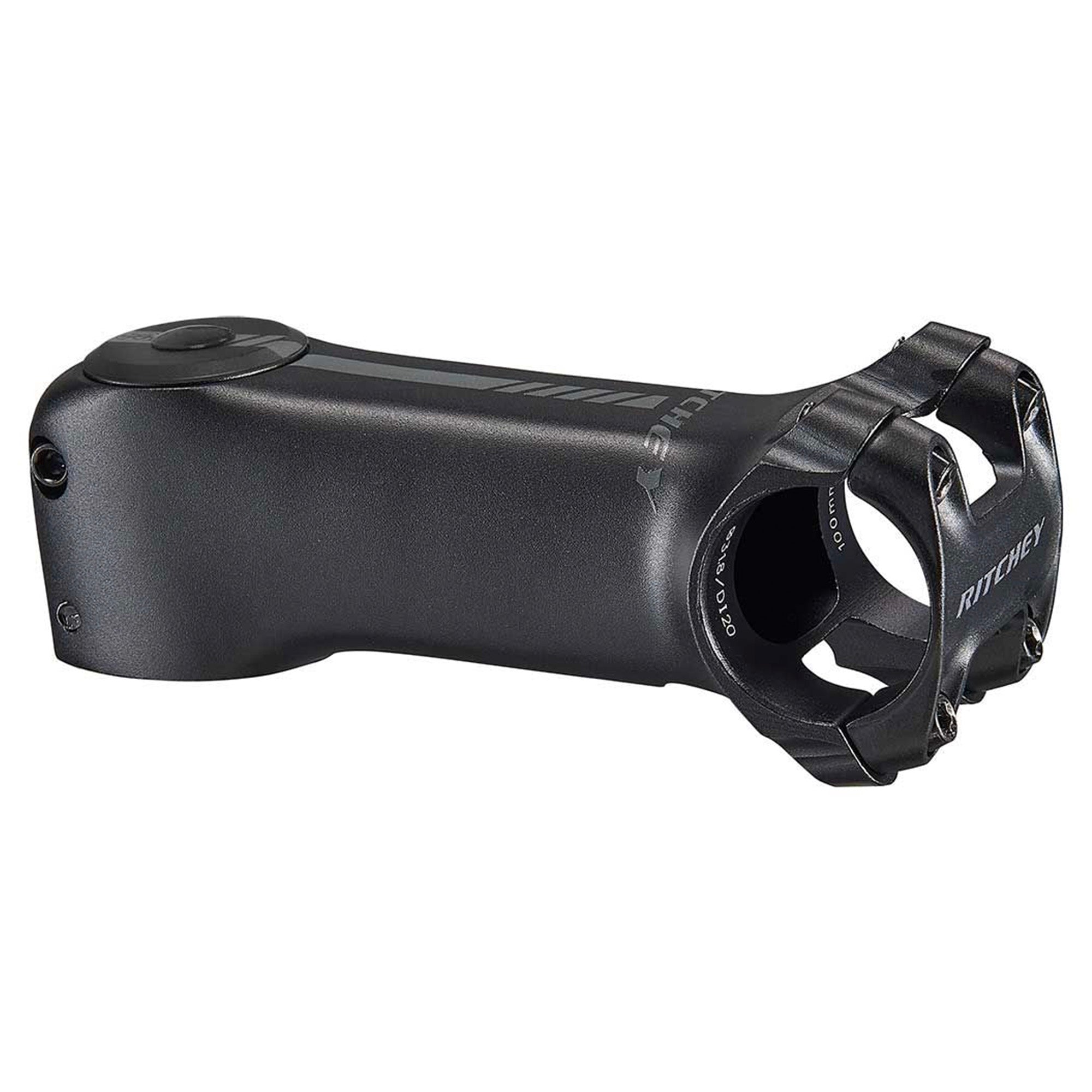

Ritchey Comp Switch Stem

Description

The front of the new Ritchey Switch Stem features the tried-and-true Ritchey C220 handlebar clamp design seen on many Ritchey stems, but we've increased its width for additional stiffness. Beyond that, everything else on this innovative stem is new and designed to stealthily conceal cables into the headset and frame. Up to four cables – such as for the rear brake, shifter, electronic drivetrain or even dropper post – are effortlessly integrated with the Ritchey Switch System spacers and Switch headset (both sold separately) to cleanly route the hidden cables into the frame. The Ritchey Switch Stem includes a matching compression cap.
About the Ritchey Switch System
The Ritchey Switch System is an innovative integrated system designed to easily conceal internally routed cables, wires, and hydraulic lines from the handlebar into bicycle frames with straight 1.5" head tubes together with tapered 1-1/8" – 1.5" forks. The Switch System consists of three elements:

Switch Stem

Switch Headset Spacers

Switch Headset

SPECIFICATIONS

Material: 6061 alloy

Bolts: stainless steel black

Matching compression cap included

Lengths: 80-120mm

Angle: 84°

Bar clamp diameter: 31.8mm

Bar clamp width: 51mm

Steerer diameter: 1-1/8" (28.6mm)

Steerer height: 43mm

Weight: 180g (100mm)

Color: BB black
